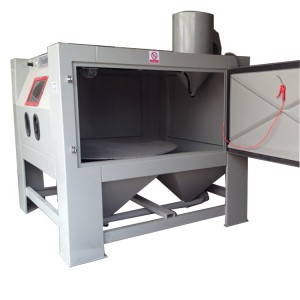

Industrial Sandblasting Cabinet

Short Description:

1) Machine body is made of stainless  2) The use of new pneumatic switch to control the send pump and compressed air, simple, safe and reliable  3) Sand pump design is reasonable, easy operation, long life service  4) New design, suitable for small and medium-sized workpiece surface treatment 5) Recommend the use of smaller glass beads and all kinds of finer gold grit  Low noise & cost, high efficiency, no dust leakage, easy maintenance, grit recycled. Applications: 1) Blasting equipment ...


  • Product Origin: China
  • Item No.: DX-SC-01
  • Shipping Port: China
  • Lead Time: In 35-50 days
  • Payment: T/T, L/C
  • Product Detail

    1) Machine body is made of stainless

    2) The use of new pneumatic switch to control the send pump and compressed air, simple, safe and reliable

    3) Sand pump design is reasonable, easy operation, long life service

    4) New design, suitable for small and medium-sized workpiece surface treatment

    5) Recommend the use of smaller glass beads and all kinds of finer gold grit

    Low noise & cost, high efficiency, no dust leakage, easy maintenance, grit recycled.

    Applications:

    1) Blasting equipment for cleaning of the workpiece surface

    2) Blasting equipment for pre-treatment of workpiece surface coating

    3) Sandblasting equipment can change the physical and mechanical properties of workpiece

    4) Light processing of workpiece



    Specifications:

    Model 1212 w 9080 w 5858 w
    Work Area 1200*1200*800  900*800*580 580*580*580
    Load-bearing 60 kg 60 kg 40 kg

    Power Supply

     220v, 50Hz  220v, 50Hz  220v, 50Hz
    Volume 20 Kg water, 5Kg abrasives  20 Kg water, 5Kg abrasives  20 Kg water, 5Kg abrasives
    compressed air supply Pressure 4-8kg/cm2, Flow:≥0.7m3/min



    Technical Data:
    1 Outline Size(mm) 1700*1300*2000
    2 Working Chamber Size(mm) 1000*1000*750
    3 Window Size(mm)  670*790
    4 Power Supply 220V 50Hz
    5 Air Source 0.8Mpa

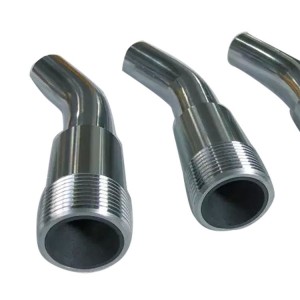

    blasting before & after of sandblast cabinet

    This sand blasting machine can be automatic or semi-automatic based on customer’s requirements.



    Blasting parts:

    The motor, the sleeve gloves, the input sand tube, the seep sand net, the sand, the table, the basket, you can also buy all this parts from us.

    blasting parts of sandblast cabinet



    Packing & Delivery:

    By wooden box:

    The sand blasting machine is very heavy, more than 200kg, there are several parts, so we suggest packing by wooden box.

    Shipped in 50 days after payment.

    Warranty: One Year.

    After-sales Service Provided: Engineers available to service machinery overseas.

    package of sandblast cabinet

    Buying Leads:

    If you are interested in our machine, please kindly inform us the following items:

    1. The name of your workpiece?( such as: iron casting parts, Aluminium auto parts etc.)

    2. The purpose of the blasting?(rust removal or make the surface to be rough to prepare for painting?)

    3. The size range of the workpiece?( max size and min size)

    4. The weight of the workpiece? (max weight and min.weight)

    5. The cleaning capacity per day/month?

    6. Any other technical requirement?
