Soft seal gate vale


    Soft seal gate vale

     The soft seal gate valve adopts non cavity structure,the inner and outer surface of valve cover is sprayed with epoxy resin, Good corrosion resistance, and the surface of gate is covered with rubber, 0 leakage. The “O” ring is used instead of packing at the valve stem seal, which makes the seal reliable.Can be customized according to needs of long stem gate valve, rising stem gate valve, lock gate valve, hard seal gate valve, electric gate valveGate valve with ruler.


     Used to cut off, connect, and regulate the medium in pipelines, it has good fluid control characteristics and sealing performance, and is widely used in pipelines with corrosive media such as metallurgy, electricity, petroleum, chemical, air, gas, combustible gases, and water supply and drainage.


     A. The overall sealing of the gate is covered with glue, with good coverage performance and precise size, ensuring the reliability of sealing;

     B. The bottom of the valve adopts the same flat bottom type as the water pipe, which does not cause debris accumulation;

     C. The entire valve is sprayed with non-toxic epoxy resin to prevent corrosion and rusting. Not only can it be used for drinking water systems, but also for sewage systems;

     D. Adopting gland mother self tightening sealing, greatly improving sealing performance;

     E. It is extremely convenient to replace sealing vulnerable parts.

      Nominal pressure0.6~2.5MPa               Nominal diameterDN50~DN1200

     Applicable mediumWater,air                Applicable teperature:≤80

     MaterialDuctile iron,SS304                 Transmission modeManual,Electric

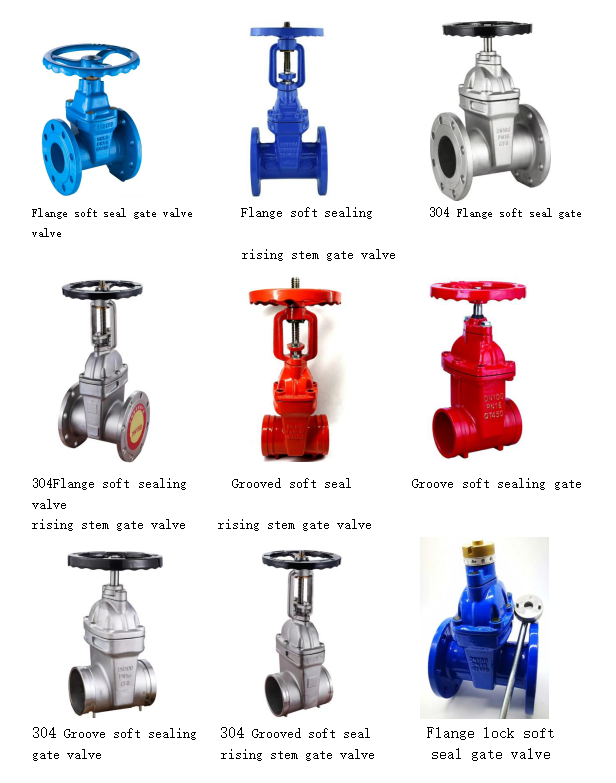

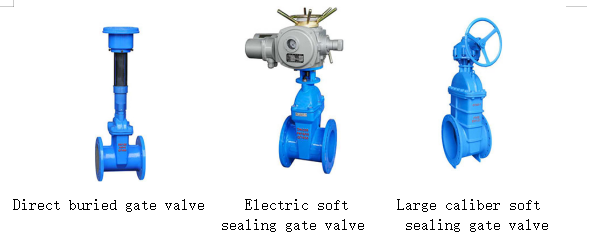

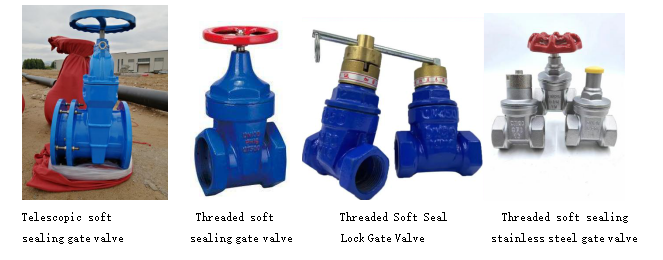

Product Series

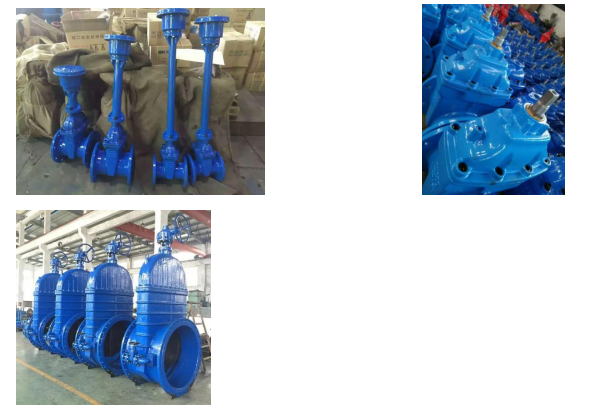

workshop production

workshop production-1
